Stormwater Pit: What It Is, How It Works, and Why It Matters

A stormwater pit is a drainage structure that collects rainwater runoff and directs it into a stormwater pipe, soakaway, detention system, or public drainage network. You may also hear it called a catch basin, drainage pit, gully pit, inlet pit, or storm drain pit, depending on the country and local terminology. Although the names vary, the purpose stays the same: capture surface water before it floods paths, yards, driveways, roads, or buildings.

Stormwater pits matter because rainwater needs a safe route away from hard surfaces. When roofs, concrete, pavers, roads, and car parks block natural absorption, water moves quickly across the ground. As a result, it can pool near foundations, damage landscaping, wash sediment into waterways, and overwhelm local drains. Therefore, a well-placed stormwater pit helps manage runoff, reduce nuisance flooding, and protect both property and public infrastructure.

What Is a Stormwater Pit?

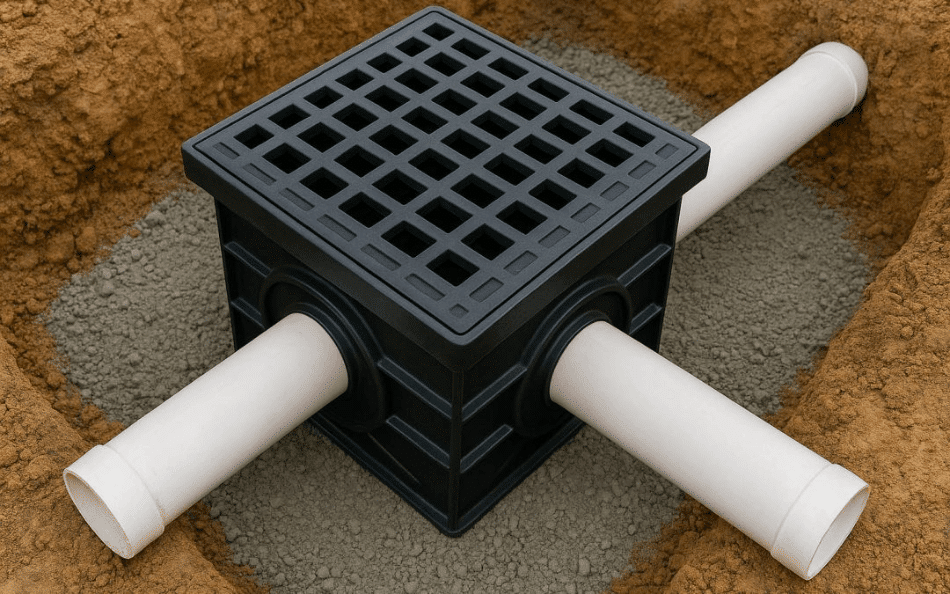

A stormwater pit is a box-like drainage chamber with a grate, lid, or inlet at ground level. Rainwater enters through the top or side, then flows out through connected pipes. In many systems, the pit also captures leaves, grit, litter, and sediment before they move farther down the drainage line.

In simple terms, the pit acts like a collection point. It does not make rain disappear. Instead, it gathers water and sends it where the drainage design allows. That destination may include a street drain, council stormwater system, rainwater tank overflow, detention tank, infiltration trench, or legal discharge point.

How Does a Stormwater Pit Work?

A stormwater pit works through gravity. First, rain falls onto roofs, paved areas, lawns, roads, or courtyards. Then, the surface slope guides that water toward the pit. Next, water drops through a grate or side inlet into the chamber. Finally, it exits through an outlet pipe and continues through the drainage system.

Many pits include a small sump at the bottom. This lower section allows heavier sediment to settle before water enters the pipe. Because of that, the pit can reduce debris movement and help protect downstream pipes from blockages. However, the sump only works if someone cleans it. If sediment fills the pit, water loses storage space and may back up during heavy rain.

Common Types of Stormwater Pits

Stormwater pits come in several forms. A grated surface pit sits in a yard, driveway, patio, or paved area and collects water from above. A curb inlet pit collects runoff along roads or car parks. A junction pit connects several stormwater pipes and allows inspection access. A silt pit includes extra space for sediment capture. A larger precast concrete pit may serve commercial sites, industrial areas, or public drainage networks.

Additionally, some systems use plastic pits for residential drainage. These lightweight pits can suit small gardens, downpipe connections, and shallow residential work. However, concrete pits often handle heavier loads, traffic areas, deeper pipes, and larger catchments better. Therefore, the right pit depends on water volume, vehicle loading, soil conditions, pipe size, and local drainage rules.

Where Should a Stormwater Pit Go?

A stormwater pit should sit where water naturally collects or where the site design directs runoff. Common locations include low points in driveways, paved courtyards, garden edges, car parks, road gutters, basement ramps, and near roof-water discharge points.

However, location matters more than convenience. If the pit sits too high, water will bypass it. If the surface slope points away from it, it will not capture enough runoff. Additionally, if the outlet pipe lacks fall, water may sit in the pit or flow backward. Therefore, proper grading and pipe layout matter as much as the pit itself.

For buildings, pits should also help keep water away from foundations, garage thresholds, and doorways. Still, they must discharge legally. Many councils and municipalities restrict where stormwater can go, so property owners should check local rules before connecting to public drains, neighboring land, or street systems.

Stormwater Pit Versus Stormwater Drain

A stormwater pit and a stormwater drain are connected, but they are not the same thing. The pit collects water at a specific point. The drain or pipe carries that water away. In other words, the pit is the entry and access chamber, while the drain is the pathway.

This difference matters when troubleshooting. If water pools around the grate, the pit may sit too high, the grate may have leaves on it, or the surrounding surface may not slope correctly. However, if the pit fills with water and does not empty, the downstream pipe may be blocked, undersized, flat, or damaged. As a result, good diagnosis starts by separating inlet problems from pipe problems.

Why Stormwater Pits Block

Stormwater pits block because they collect the exact materials that rainwater carries. Leaves, mulch, soil, sand, gravel, plastic, cigarette butts, roots, and construction debris can all build up inside the chamber. Over time, this material reduces the sump volume and clogs the outlet pipe.

EPA stormwater guidance highlights sediment and debris removal, inlet and outlet cleaning, and maintenance logs as important parts of stormwater system care. Additionally, EPA guidance on stormwater inlet controls notes that catch basin insert maintenance includes removing sediment and debris from the catch basin. This confirms a simple point: drainage structures only work well when people inspect and clean them.

Blockages often appear during storms because heavy rain moves debris quickly. However, the real problem usually builds up earlier. A pit may look fine on a dry day, yet it may fail once runoff carries leaves toward the grate.

How Often Should You Clean a Stormwater Pit?

Most residential stormwater pits need inspection several times a year and cleaning whenever sediment, leaves, or standing debris build up. At minimum, check pits before the wet season, after major storms, and after heavy leaf fall. Commercial sites, car parks, industrial yards, and roads may need more frequent maintenance because they collect more sediment and pollutants.

A simple inspection includes lifting the grate safely, checking sediment depth, removing leaves, confirming the outlet pipe looks clear, and watching how quickly the pit drains after rain. However, deep pits, heavy lids, confined spaces, and contaminated runoff can create safety risks. Therefore, property owners should call a licensed drainage contractor for large, deep, smelly, oily, or hard-to-access pits.

Signs Your Stormwater Pit Needs Attention

A stormwater pit may need cleaning, repair, or redesign if you notice water pooling around it, slow draining after rain, bad smells, gurgling sounds, loose grates, cracked walls, sunken pavement, sediment near the outlet, or water backing up from another pit. Additionally, repeated flooding at the same location may point to an undersized system rather than a simple blockage.

If water sits in the pit for a short time after rain, that may not always mean failure. Some pits have sumps that hold water and sediment. However, if the water level stays high, smells bad, attracts mosquitoes, or reaches the outlet pipe, the system needs inspection.

Can a Stormwater Pit Prevent Flooding?

A stormwater pit can reduce local flooding, but it cannot solve every drainage problem by itself. It must connect to pipes, detention storage, infiltration systems, or public drainage with enough capacity. Additionally, the surface must slope toward the pit, and the outlet must discharge safely.

During extreme rainfall, even well-designed systems can exceed capacity. Therefore, larger sites may need multiple pits, trench drains, detention tanks, overland flow paths, rain gardens, permeable paving, or retention systems. A pit works best as one part of a complete stormwater plan.

Installation and Sizing Considerations

Stormwater pit sizing depends on catchment area, rainfall intensity, surface type, pipe size, ground levels, outlet capacity, and local codes. A small garden pit may handle light runoff from a paved area, while a driveway, road, or commercial site may need a larger grated pit with traffic-rated covers.

Before installation, a drainage professional should calculate expected flow and confirm pipe fall. They should also check underground services, soil conditions, legal discharge points, and load ratings. Moreover, the grate should match the location. Pedestrian areas need safe grates, while driveways and roads need covers rated for vehicle loads.

Poor installation can create new problems. If the pit drops, cracks, floats, clogs, or connects to an illegal discharge point, the repair may cost more than correct installation would have cost in the first place.

Final Thoughts

A stormwater pit is a simple but important part of a drainage system. It collects rainwater runoff, captures some sediment and debris, and directs water into pipes or other approved stormwater controls. When it works well, it protects driveways, yards, roads, foundations, and public drains from avoidable water damage.

However, a stormwater pit needs the right location, size, outlet, and maintenance. Clean the grate, remove sediment, inspect after storms, and fix slow-draining problems early. Additionally, use a qualified drainage professional when the pit serves a large area, connects to public infrastructure, or shows repeated flooding. A well-designed and well-maintained stormwater pit will not stop every storm, but it can make heavy rain far easier to manage.
